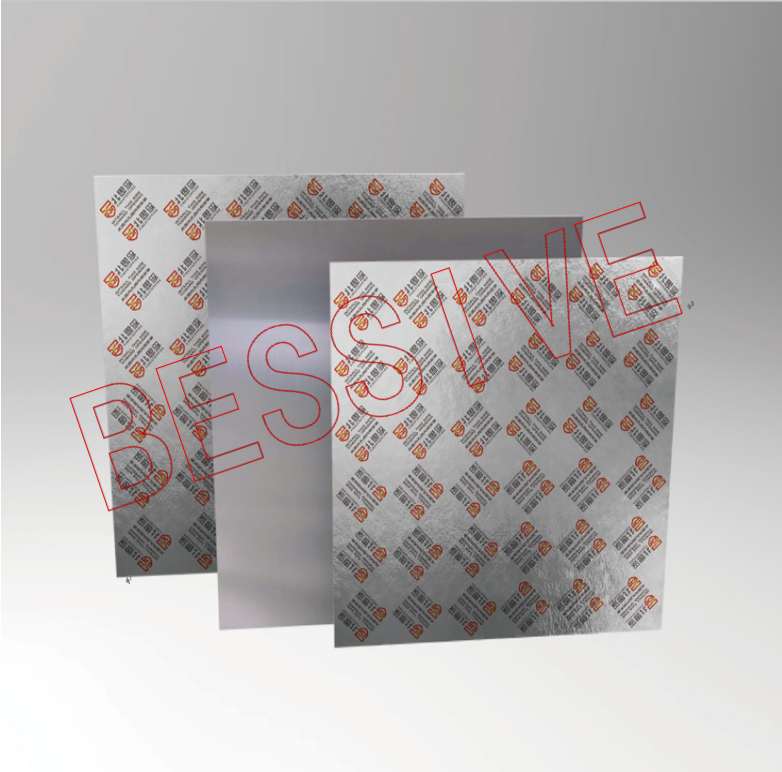

IFS83/IFS82 is a composite sheet mainly composed of a metal panel and a fire-resistant expanding rubber layer. In a fire, it can rapidly expand to form an insulating layer to prevent heat from spreading. At the same time, the huge expansion pressure can quickly seal the gaps left by the burning combustibles to prevent the spread of fire.

1. Fire ratings: 3 hours, 2 hours

2. CCCF certification, FM4990 approval

3. Testing standards: GB23864-2023, ASTM E814

4. Other features,

* High strength and high explosion resistance

* Excellent water resistance and weather resistance

* 50-year service life

* High expansion performance

* Watertight and airtight related tests

* Explosion resistance that meets chemical industry standards

* Stainless steel and galvanized steel plates are available for selection

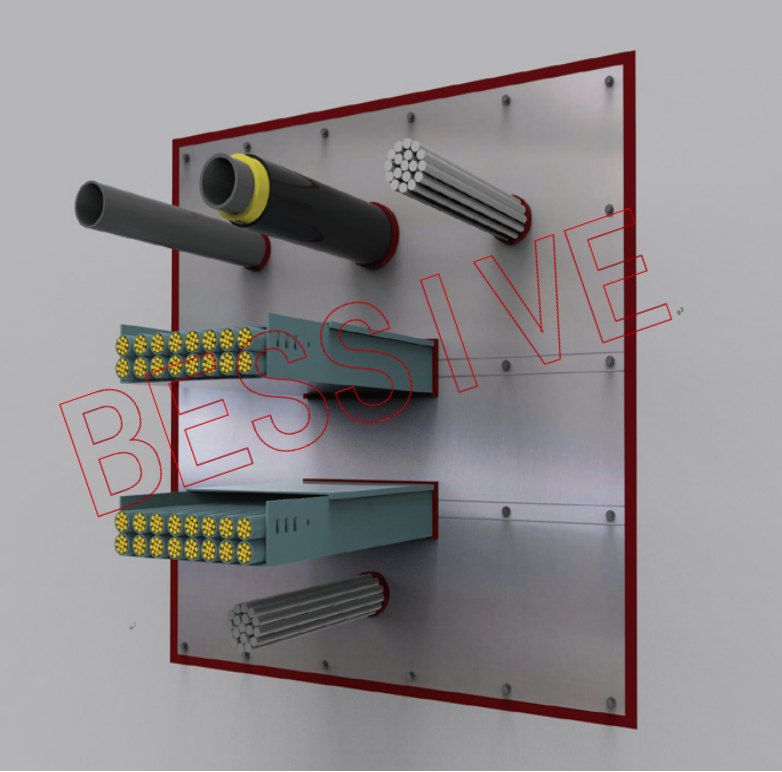

* Suitable for fire blocking of various types of through holes

* Can be used as fire-blocking walls for cable trenches and cable tunnels

* Can be used as fire-blocking partitions for overhead bridges

* Can be used in places with high explosion resistance requirements
